Reference : CHWX.007.050
Brand reference : 2415 09
Catalog Price :
€67.65
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | Metal/Metal |
| Type of connection | Wafer |
| Diameter of connection | DN50 |
| GN | 10/16/25/40 |
| PN | 40 |
| Fluid working Temp | (-)20°C to (+)240°C |
| Operation | Mounting all positions |
| Specifications | Disck |
| Compatibility - fluids | For food industry, chemical, pharmaceutical, petrochemical, hydraulic system and compressed air |
| Customs duty number | 8481-3099 |
| Gross weight (kg) | 0,775 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

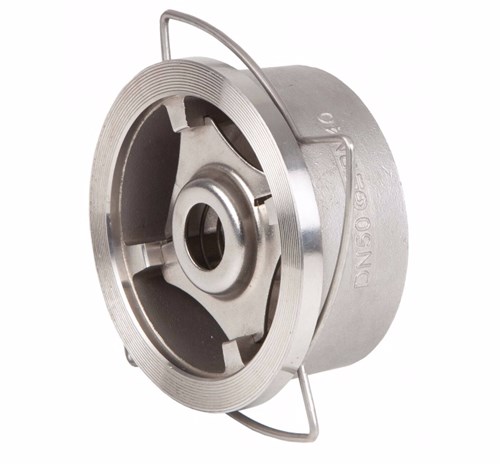

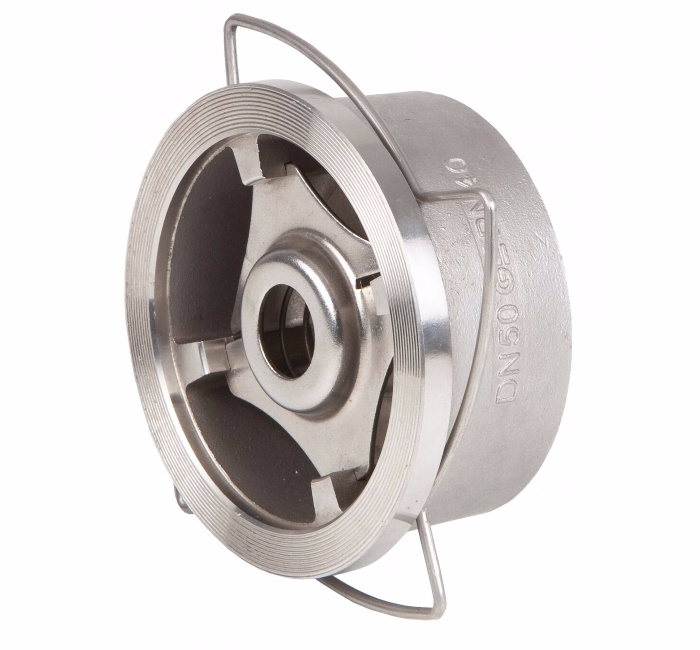

Stainless steel disc check valve
- DN 50
- Flange connection according to EN 1092 PN10/16/25/40 and ANSI 150/300
- PN 40
- Flow coefficient Kv 40 m³/h
- Body and disc in stainless steel CF8M
- Spring in stainless steel AISI 316
- Metal/Metal seal
- Fluid temperature range -20°C to +240°C
- Opening pressure between 24 and 30 mbar
- Spacing according to EN 558-1 series 49
- Installation with vertical, horizontal or inclined flow
- With centering ring
- DN 50
- Flange connection according to EN 1092 PN10/16/25/40 and ANSI 150/300
- PN 40
- Flow coefficient Kv 40 m³/h
- Body and disc in stainless steel CF8M
- Spring in stainless steel AISI 316
- Metal/Metal seal
- Fluid temperature range -20°C to +240°C
- Opening pressure between 24 and 30 mbar
- Spacing according to EN 558-1 series 49
- Installation with vertical, horizontal or inclined flow
- With centering ring
