Reference : CHFX.004.080
Catalog Price :
€339.32
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | EPDM |
| Type of connection | With flanges |
| Diameter of connection | DN80 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)80°C |
| Operation | Horizontal or vertical mounting with ascending fluid |
| Specifications | Swing check |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 19 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

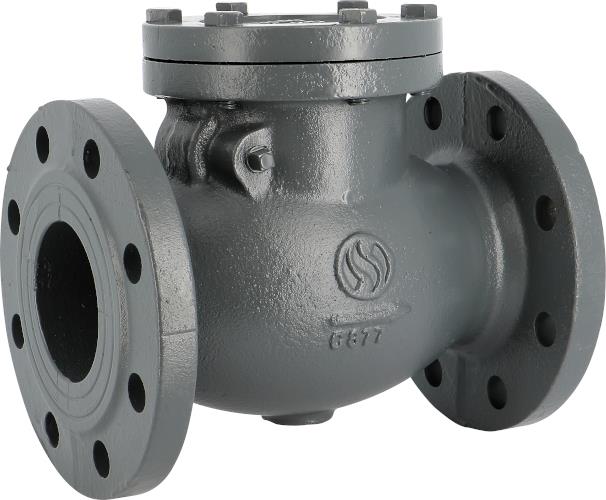

Swing check valve :
- Body in GG25 cast iron
- EPDM sealing
- Flanged connection in DN80
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)80°C
- Body in GG25 cast iron
- EPDM sealing
- Flanged connection in DN80
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)80°C
Associated products
Stock : 0
PFAX.005.080
Blind Flange - DN 80 - PN16 - GN10/16 - Steel body
