Reference : CHTX.001.034
Brand reference : 3131 05
Catalog Price :
€16.62
Tax excluded 21.00 %
| Body material | Brass |
| Sealing | NBR |
| Type of connection | Threaded Female |
| Diameter of connection | 3/4'' |
| PN | 25 |
| Fluid working Temp | (-)10°C to (+)100°C |
| Operation | Mounting all positions |
| Specifications | Disck |
| Compatibility - fluids | For water, drinking water, air, neutral gas and fuel oil |
| Customs duty number | 8481-3099 |
| Gross weight (kg) | 0,275 |
| Eclass | 37010000 |
| Country of origin | IT |
| UNSPSC Code | 40140000 |

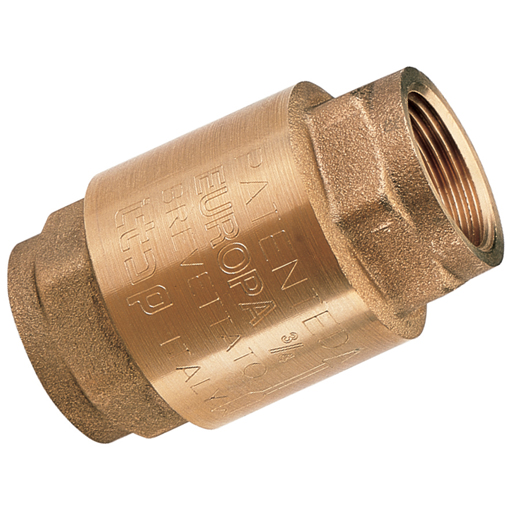

EUROPA Disc Check Valve
- DN 20
- 3/4" BSP threaded connection
- Maximum operating pressure 25 bar
- Suitable for vacuum from -300 to -500 mbar
- Opening pressure +/- 26 mbar
- Brass body
- NBR seal
- Stainless steel spring
- Operating temperature range from -20°C to +100°C
- Can be installed in any position: vertical, horizontal, oblique
- Suitable for use in hydraulic, heating, air conditioning and pneumatic systems
- A.C.S. N° 18 ACC NY 088 sanitary conformity certificate
- DN 20
- 3/4" BSP threaded connection
- Maximum operating pressure 25 bar
- Suitable for vacuum from -300 to -500 mbar
- Opening pressure +/- 26 mbar
- Brass body
- NBR seal
- Stainless steel spring
- Operating temperature range from -20°C to +100°C
- Can be installed in any position: vertical, horizontal, oblique
- Suitable for use in hydraulic, heating, air conditioning and pneumatic systems
- A.C.S. N° 18 ACC NY 088 sanitary conformity certificate
