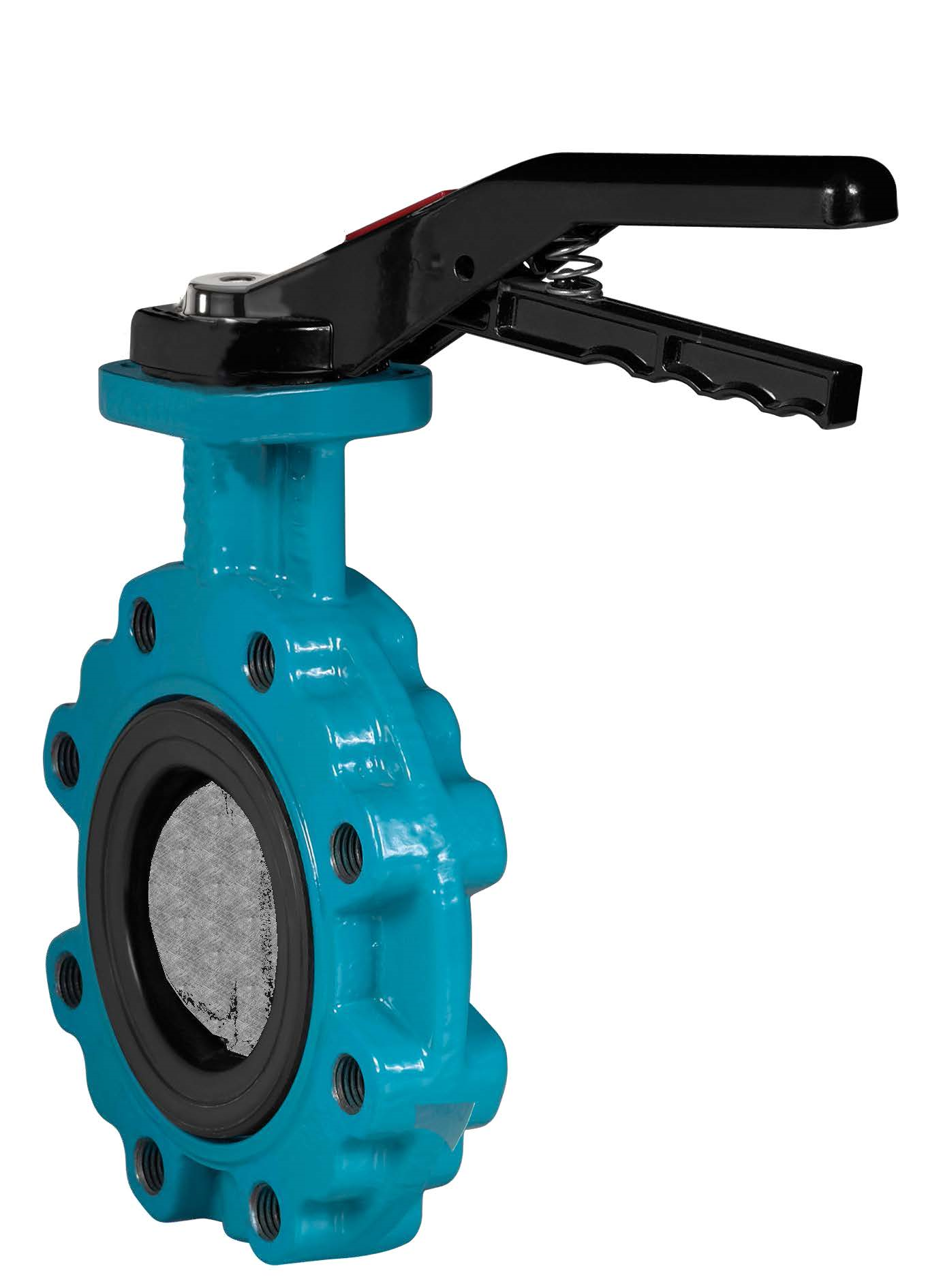

Butterfly valve - GGG40/EPDM/CF8M - LUG DN150 - GN16 - PN16 - Hand lever

Name: Butterfly valve - GGG40/EPDM/CF8M - LUG DN150 - GN16 - PN16 - Hand lever
Brand: Gemü
SKU: BULM.001.150
Price: 376.76 EUR
Availability: InStock

Reference : BULM.001.150

Brand reference : 88678444

Catalog Price :

€376.76

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	2
Stock Belgium (Barchon)	6
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	Nodular cast iron (GGG40-50)
Sealing	EPDM
Type of connection	LUG
Diameter of connection	DN150
GN	16
PN	16
Fluid working Temp	(-)10°C to (+)120°C
Operated	Manual by notched lever
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8085
Gross weight (kg)	13,336
Eclass	37010000
UNSPSC Code	40140000

Description
Documents

GEMU handbediende vlinderklep serie 487
- DN 150
- LUG-type met draadnokken
- Aansluiting: te plaatsen tussen PN16 flenzen
- Maximale werkdruk 16 bar
- Gietijzeren behuizing EN-GJS-400-15 (GGG40) epoxy gecoat 250 µm (RAL 5021)
- Vlinder in roestvrij staal CF8M, 1.4408
- As in roestvrij staal AISI 420, 1.4021
- Vervangbare EPDM-manchet
- Vloeistoftemperatuurbereik van -10°C tot +120°C
- Omgevingstemperatuurbereik van -10°C tot +70°C
- Bediening door ingekeepte hendel
- Afmetingen volgens ISO 5752/20, EN 558-1/20, API 609 categorie A
- Lektest volgens EN 12266-1/P12 - A
