Reference : BEKOMAT 31U H
Brand reference : 4024381
Catalog Price :
€214.50
Tax excluded 21.00 %
| Specifications | Electric drain |
| Body material | Aluminum |
| Input connection | G1/2" |
| Output connection | G1/4" |
| Actual flow at 7 bar | 25 m³/min |
| PN | 16 |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 2,436 |
| Eclass | 27290000 |
| Country of origin | DE |
| UNSPSC Code | 27131700 |

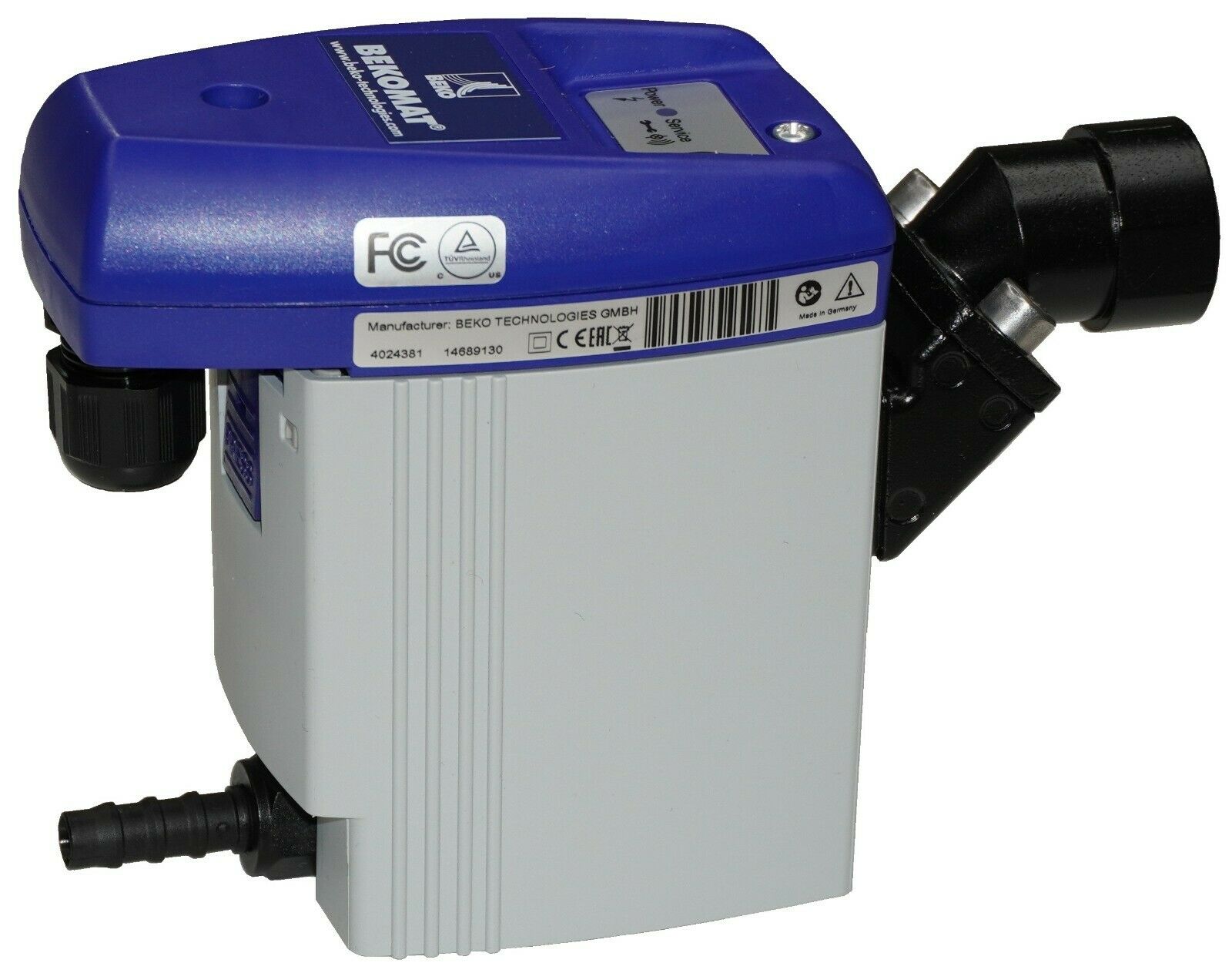

BEKO condensate drain BEKOMAT 31U , 240Vac
- Max. compressor performance [m³/min] :2,5
- Max. dryer performance [m³/min] : 5
- Max. filter performance [m3/min] : 25
- Voltage : 230VAC / 50-60Hz
- Operating pressure [bar] : 0.8 - 16
- Temperature [°C] : +1 bis + 60
- Condensate feed : 1 x G 1/2
- Condensate drain : DN 8-10 bzw. G 1/4i
- Dimenstions B x T x H [mm] : 65 x 164 x 118
- Max. compressor performance [m³/min] :2,5
- Max. dryer performance [m³/min] : 5
- Max. filter performance [m3/min] : 25
- Voltage : 230VAC / 50-60Hz
- Operating pressure [bar] : 0.8 - 16
- Temperature [°C] : +1 bis + 60
- Condensate feed : 1 x G 1/2
- Condensate drain : DN 8-10 bzw. G 1/4i
- Dimenstions B x T x H [mm] : 65 x 164 x 118
