Reference : BAFM.007.100
Catalog Price :
€9,356.78
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | PTFE filled with 15% glass fiber |
| Type of connection | With flanges |
| Diameter of connection | DN100 |
| GN | 16 |
| PN | 16 |
| Fluid working Temp | (-)30°C to (+)150°C |
| Operated | Manually |
| Specifications | 3-way - T-port passage |
| Compatibility - fluids | For aggressive fluids and aggressive environments and hydrocarbons |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 55 |
| Eclass | 37010000 |
| Country of origin | TW |
| UNSPSC Code | 40140000 |

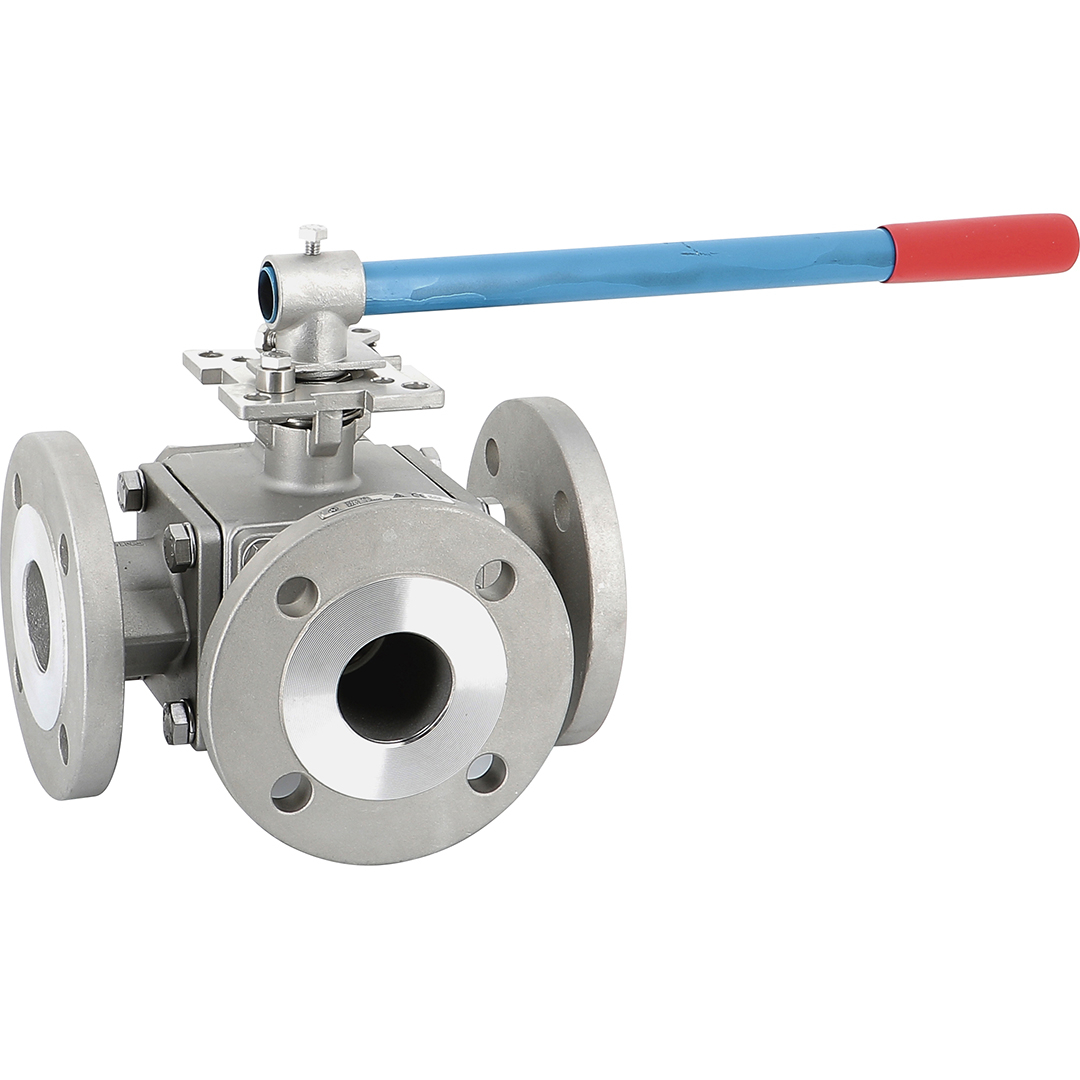

STAINLESS STEEL BALL V. 786 PN16 DN1003way T-port CF8M
