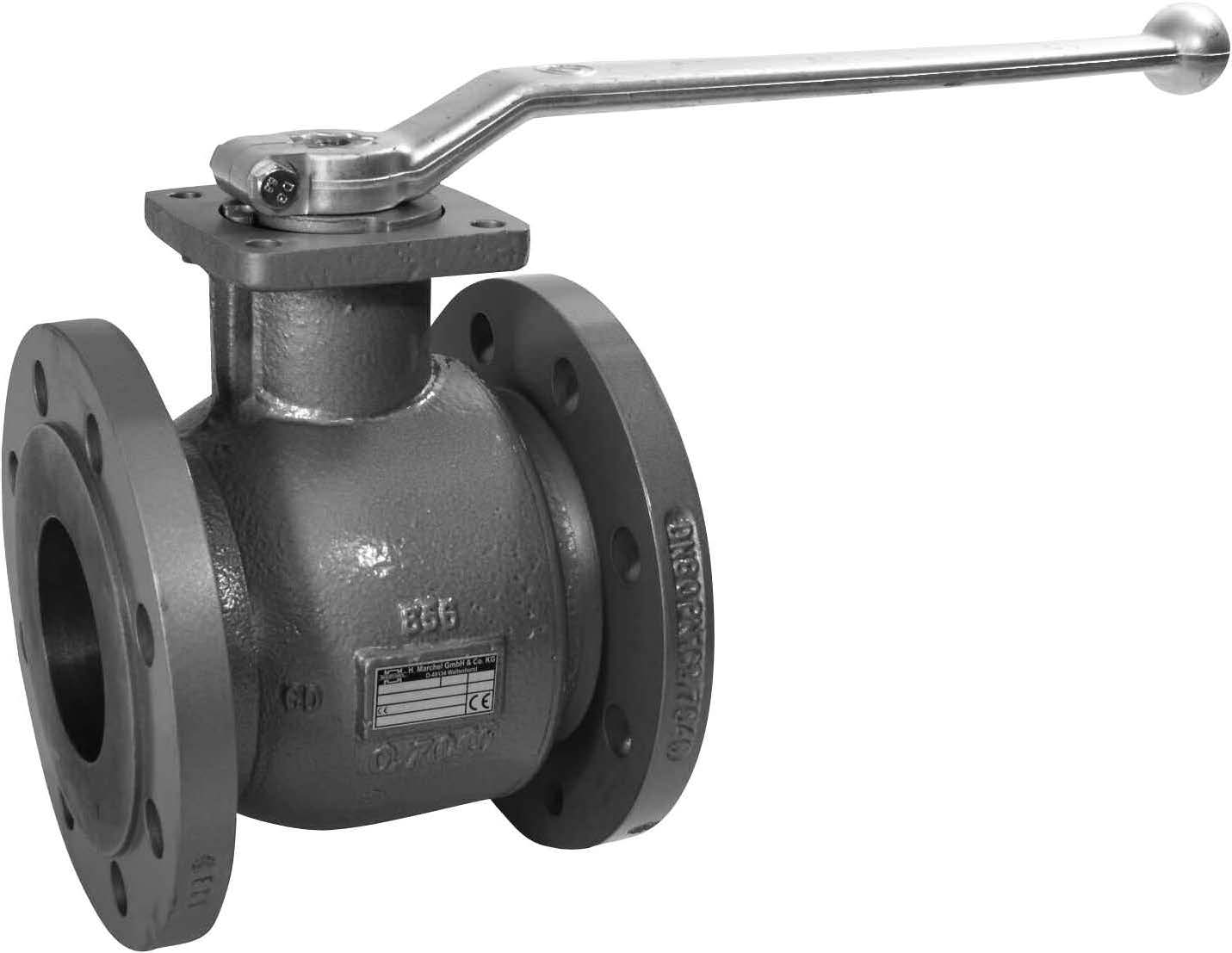

Ball valve - GGG40 Cast Iron body - PTFE - DN50 - Flanges GN16 - PN16 - 2/2 - 60°C

Reference : BAFM.009.050

Catalog Price :

€415.37

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	2
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	GGG40 cast iron
Sealing	PTFE
Type of connection	With flanges
Diameter of connection	DN50
GN	16
PN	16
Fluid working Temp	(-)10°C to (+)60°C
Operated	Manually
Specifications	2 ways - 2 pieces
Compatibility - fluids	For water, light and heavy oil and gas
Customs duty number	8481-8081
Gross weight (kg)	9,3
Eclass	37010000
Country of origin	DE
UNSPSC Code	40140000
