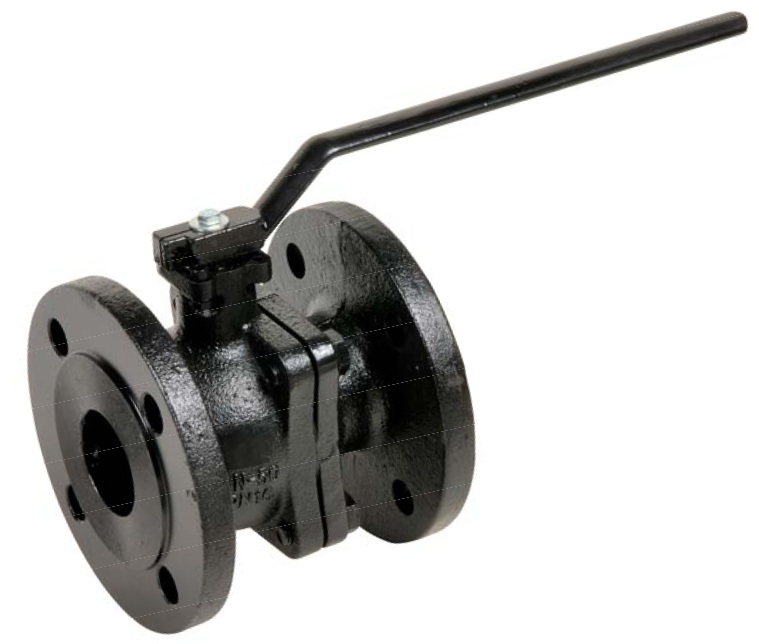

Ball valve - GG25 Cast Iron body - PTFE/FPM - DN15 - Flanges GN10/16 - PN16 - 2/2 - 200°C

Reference : BAFM.001.015

Catalog Price :

€105.70

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	GG25 cast iron
Sealing	FPM (Viton®) / PTFE
Type of connection	With flanges
Diameter of connection	DN15
GN	10/16
PN	16
Fluid working Temp	(-)10°C to (+)200°C
Operated	Manually
Specifications	2 ways - 2 pieces
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8081
Gross weight (kg)	3,5
Eclass	37010000
Country of origin	ES
UNSPSC Code	40140000

Description
Documents

CAST IRON BALL V. 507 PN10/16 DN15 Split body GG25

274-catalogue méca-fluid (v.3.2019.fr)_page47.pdf
