Reference : FLFM.001.150
Brand reference : P070001150
Catalog Price :
€3,685.00
Tax excluded 21.00 %
| Body material | Ductile iron |
| Sealing | NBR |
| Type of connection | With flanges |
| Diameter of connection | DN150 |
| GN | 16 |
| PN | 16 |
| Fluid working Temp | 0°C to (+)70°C |
| Specifications | 3 ways |
| Compatibility - fluids | For drinking water distribution networks, fire protection tanks and irrigation networks |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 79 |
| Eclass | 37010000 |
| Country of origin | IT |
| UNSPSC Code | 40140000 |

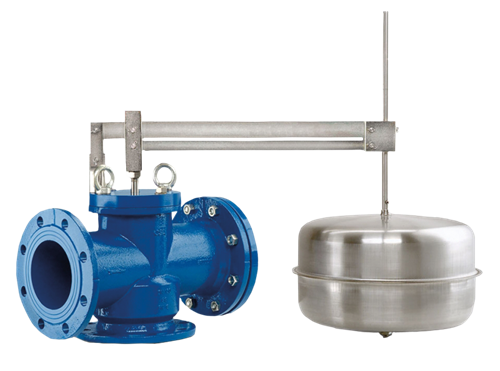

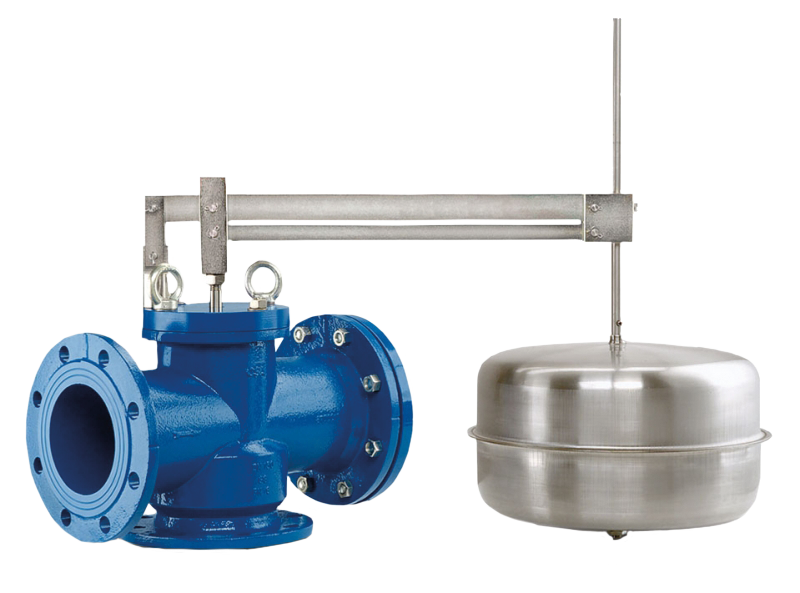

Balanced float valve with single seat model ATHENA
- DN 150
- PN 16
- EN 1092-2 GN 16 flanged connection
- Body with square or in-line passage
- Epoxy coated GJS 500-7 ductile iron body
- Steel cover
- AISI 304 stainless steel seat
- NBR seat seal
- AISI 304 stainless steel float
- Maximum operating pressure 16 bar
- Maximum temperature +70°C
- Flow coefficient Kv: at an angle 245 m³/h
- Flow coefficient Kv: straight 209 m³/h
- Float arm adjustable to 0°, 45° and 90°C
- DN 150
- PN 16
- EN 1092-2 GN 16 flanged connection
- Body with square or in-line passage
- Epoxy coated GJS 500-7 ductile iron body
- Steel cover
- AISI 304 stainless steel seat
- NBR seat seal
- AISI 304 stainless steel float
- Maximum operating pressure 16 bar
- Maximum temperature +70°C
- Flow coefficient Kv: at an angle 245 m³/h
- Flow coefficient Kv: straight 209 m³/h
- Float arm adjustable to 0°, 45° and 90°C
