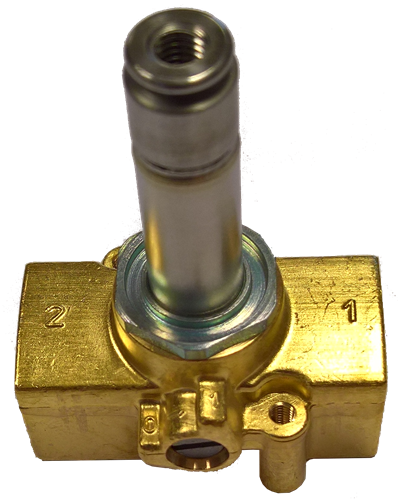

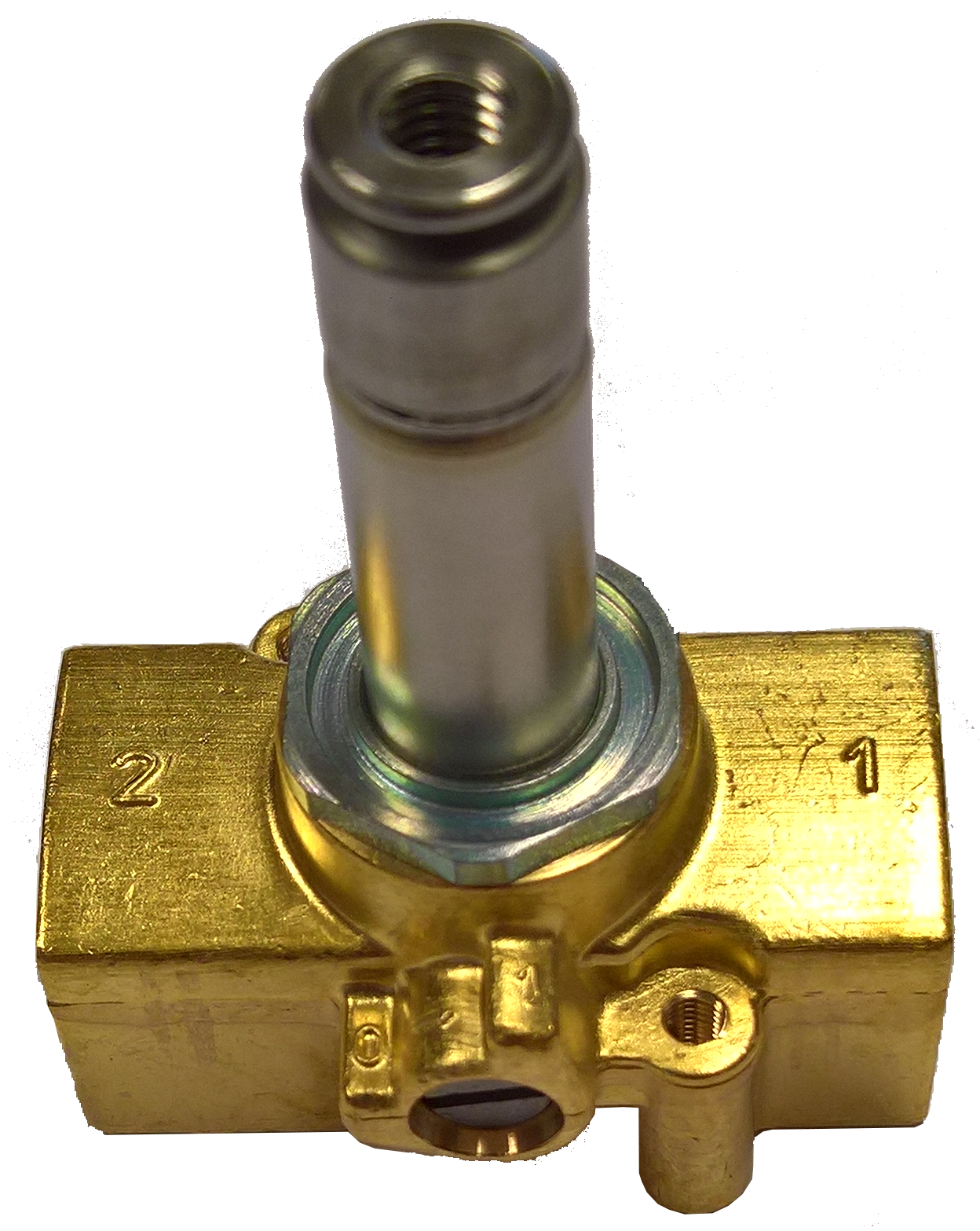

ASCO Solenoir valve Serie - Brass body - FPM - 3/2 - NC - G1/8" - No voltage - With manual operator

Reference : SCG356B053VMS.AC/DC

Catalog Price :

100.62
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Supplier series 356
Specifications NC (Normally closed)
Body material Brass
Sealing FPM (Viton®)
Diameter of connection 1/8''
Full voltage code AC/DC - Body only
Min differential pressure 0
Max differential pressure 10
Operated With manual control
Kv Flow rate (m³/h) 0.08
Fluid working Temp (-10°C to 60°C)
Ambient Temp (-10°C to 60°C)
Compatibility - fluids Air and filtered water
Dimensions (mm) 75
Type of current AC/DC - Body only
Voltage AC/DC - Body only
Customs duty number 8481-8099
Gross weight (kg) 0,093
Eclass 27220000
Country of origin FR
UNSPSC Code 31251500
PRESSURE VESSEL 3/2NC G1/8 BRASS D=1.6 EFPM W.MAN.OPERATOR W.FITTING NIPPLE WITHOUT COIL AND WITHOUT CONNECTOR
