Reference : SCG238D108V.24/DC
Catalog Price :
€775.73
Tax excluded 21.00 %
| Supplier series | 238 |
| Specifications | NO (Normally open) |
| Body material | Stainless Steel |
| Sealing | FPM (Viton®) |
| Diameter of connection | 1'' |
| Full voltage code | 24/DC |
| Min differential pressure | 0.35 |
| Max differential pressure | 10 |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 12 |
| Fluid working Temp | (0°C to 130°C) |
| Ambient Temp | (-10°C to 60°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 105 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 1,287 |
| Eclass | 27220000 |
| Country of origin | FR |
| UNSPSC Code | 31251500 |

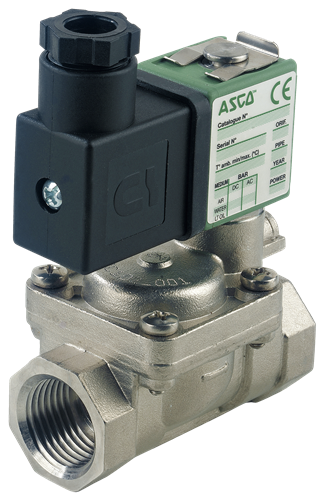

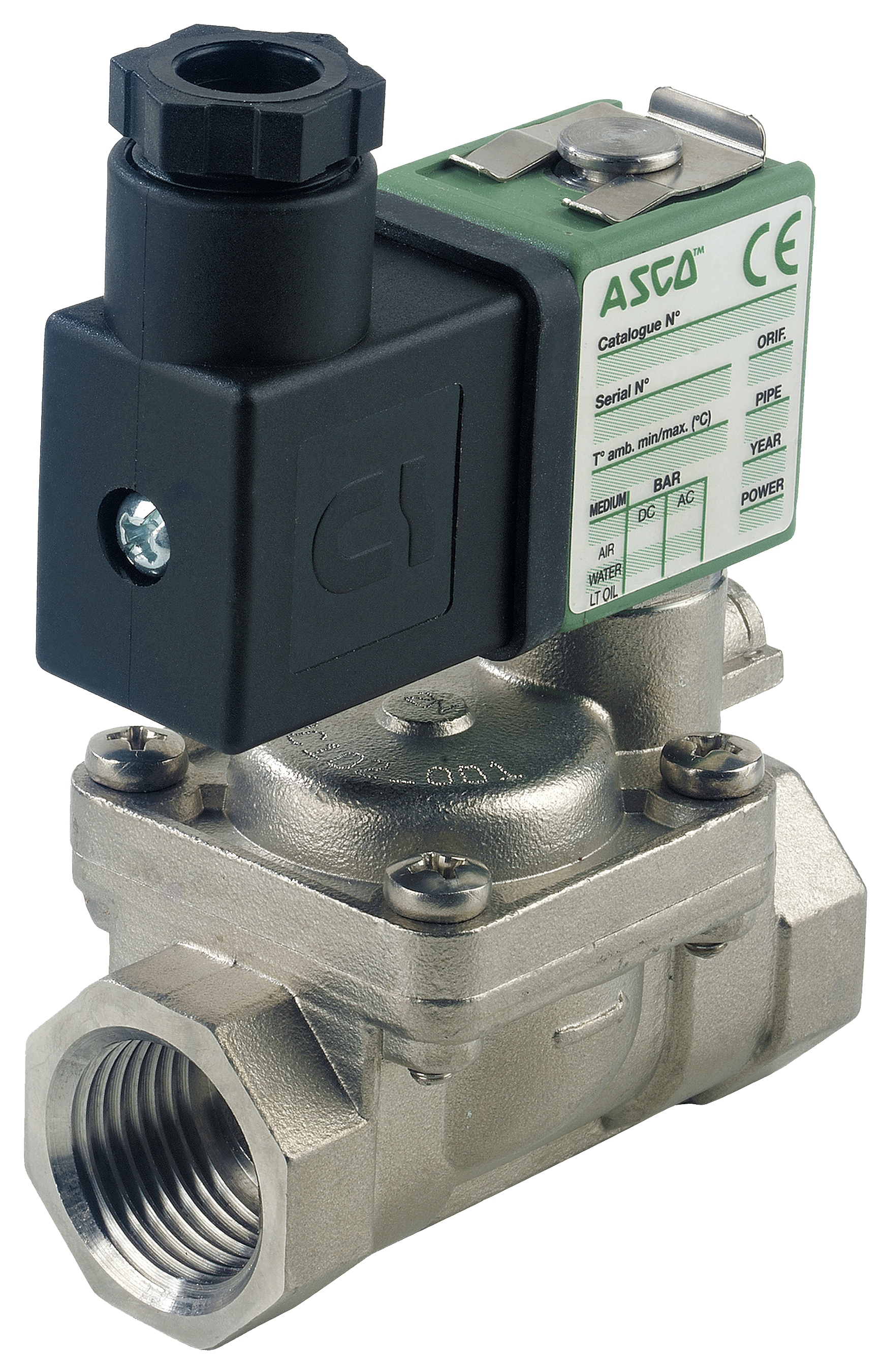

SOLENOID VALVE 2/2NO ST ST FPM DN24 G1 SS MANUAL OPERAT. NAT WITH COIL. 24/DC AND CONNECTOR
