Reference : SCG238E018MO.24/DC
Catalog Price :
€380.31
Tax excluded 21.00 %
| Supplier series | 238 |
| Specifications | NC (Normally closed) |
| Body material | Brass |
| Sealing | NBR |
| Diameter of connection | 2'' |
| Full voltage code | 24/DC |
| Min differential pressure | 0.5 |
| Max differential pressure | 10 |
| Operated | With manual control |
| Kv Flow rate (m³/h) | 34 |
| Fluid working Temp | (-10°C to 85°C) |
| Ambient Temp | (-10°C to 60°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 157 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 2,9 |
| Eclass | 27220000 |
| Country of origin | IT |
| UNSPSC Code | 31251500 |

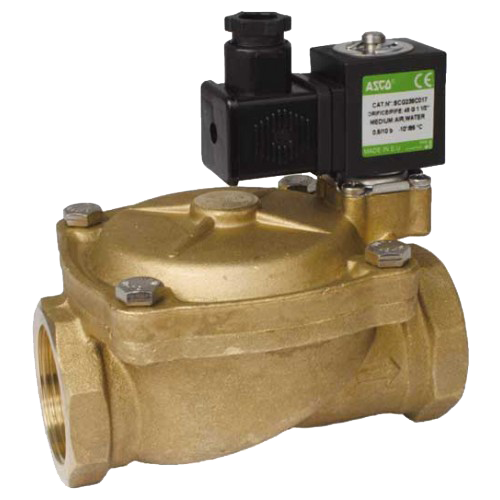

Power-operated solenoid valve with integrated pilot, uncoupled diaphragm ASCO Series 238
- Function 2/2, normally closed
- G 2" threaded connection
- Orifice diameter 45mm
- Flow coefficient Kv: 34 m³/h
- Allowable differential pressure: min. 0.5 bar / max. 10 bar
- Fluid temperature range from -10°C to +85°C
- Ambient temperature range from -10°C to +50°C
- Brass body
- Membrane and valve in NBR
- With manual control
- With electric coil 24V DC (511239-002)
- Coil power: 9W
- With standard connector (88122602)
- Protection index: IP65
- Function 2/2, normally closed
- G 2" threaded connection
- Orifice diameter 45mm
- Flow coefficient Kv: 34 m³/h
- Allowable differential pressure: min. 0.5 bar / max. 10 bar
- Fluid temperature range from -10°C to +85°C
- Ambient temperature range from -10°C to +50°C
- Brass body
- Membrane and valve in NBR
- With manual control
- With electric coil 24V DC (511239-002)
- Coil power: 9W
- With standard connector (88122602)
- Protection index: IP65
