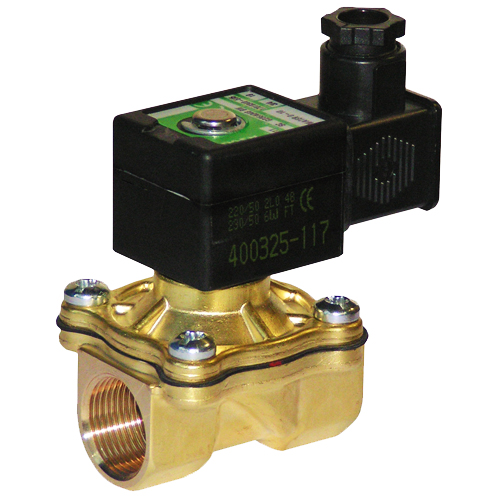

ASCO Solenoid valve Serie 238 - Brass body - NBR - 2/2 - NC - G1/2" - 24/DC

Name: ASCO Solenoid valve Serie 238 - Brass body - NBR - 2/2 - NC - G1/2" - 24/DC
Brand: Asco
SKU: SCG238A046.24/DC
Price: 141.15 EUR
Availability: InStock

Reference : SCG238A046.24/DC

Catalog Price :

€141.15

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	11
Stock Belgium (Barchon)	13
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Supplier series	238
Specifications	NC (Normally closed)
Body material	Brass
Sealing	NBR
Diameter of connection	1/2"
Full voltage code	24/DC
Min differential pressure	0
Max differential pressure	10
Operated	Without manual control
Kv Flow rate (m³/h)	2.1
Fluid working Temp	(-10°C to 85°C)
Ambient Temp	(-10°C to 60°C)
Compatibility - fluids	Air, neutral gas, water, oil
Dimensions (mm)	52
Type of current	Direct (=) - DC
Voltage	24V
Customs duty number	8481-8087
Gross weight (kg)	0,51587
Eclass	27220000
Country of origin	FR
UNSPSC Code	31251500
