Reference : SCG238E019.24/DC
Catalog Price :
€456.46
Tax excluded 21.00 %
| Supplier series | 238 |
| Specifications | NO (Normally open) |
| Body material | Brass |
| Sealing | NBR |
| Diameter of connection | 1"1/4 |
| Full voltage code | 24/DC |
| Min differential pressure | 0.5 |
| Max differential pressure | 10 |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 15 |
| Fluid working Temp | (-10°C to 85°C) |
| Ambient Temp | (-10°C to 50°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 113 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 0,7 |
| Eclass | 27220000 |
| Country of origin | IT |
| UNSPSC Code | 31251500 |

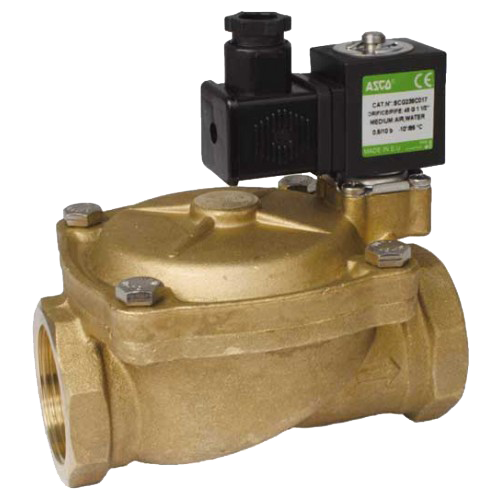

SOLENOID VALVE G1 1/4 DN30 BRASS BODY, WITHOUT MANUAL OPERAT., WITH NBR SEAL, WITH PPS IP67 COIL AND CONNECTOR
