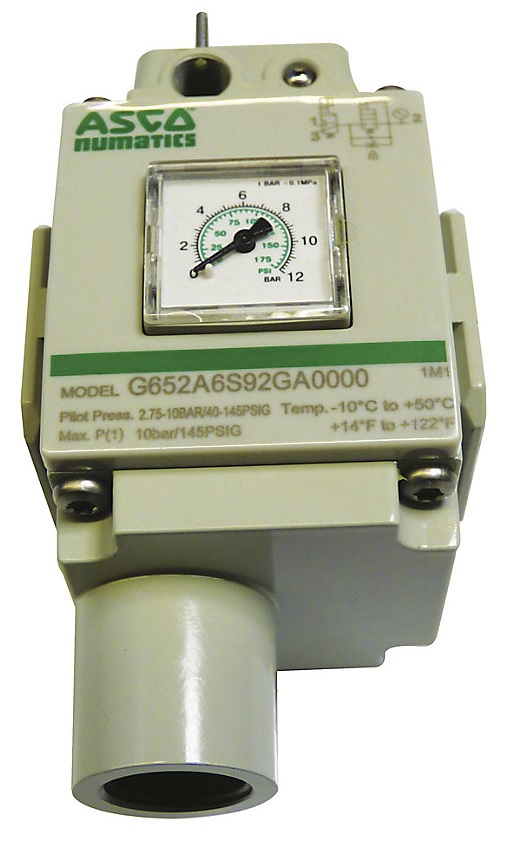

3/2 Quick exhaust ASCO Serie 652 - Solenoid air pilot - G1/2" - 2,75 to 10 bar - Q:5000l/min

Reference : G652A5S94GA0000

Catalog Price :

208.23
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

2

Stock Belgium (Barchon)

4

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Supplier series 652
Operated With pilot
Body material Aluminum
Piston seal material NBR/FPM (Viton®)
Diameter of connection 1/2"
Voltage Without connector nor coil
Flow 1 to 2 (l/min) 4650 l/min
Flow 2 to 3 (l/min) 5000 l/min
Max input pressure at 23°C 10 bar
Set pressure 6,3 bar
?P load loss 1 bar
Fluid working Temp (-)10°C to (+)50°C
Compatibility - fluids Air or neutral gas
Customs duty number 8487-9090
Gross weight (kg) 0,623
Eclass 27290000
Country of origin PL
UNSPSC Code 27131700
QUICK EXHAUST SOLENOID PILOT PORT SIZE 1/2 PRODUCT TYPE 3/2 WITHOUT PILOT OPERATOR LOW PROFILE GAUGE NO VOLTAGE
