Reference : AQ003LFH015PA000E0M
Catalog Price :
€603.78
Tax excluded 21.00 %
| Body material | Aluminum cast iron |
| Sealing | IP68 |
| Fluid working Temp | (-)20°C to (+)60°C |
| Operated | Electrically |
| Operating torque, pressure opening at 6 bar | 30 Nm |
| Adapter plate | F03/F04/F05 |
| Output star | 14 mm |
| Voltage | 85 to 260VAC + 24/DC |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 2,5 |
| Eclass | 27220000 |
| Country of origin | FR |
| UNSPSC Code | 31251500 |

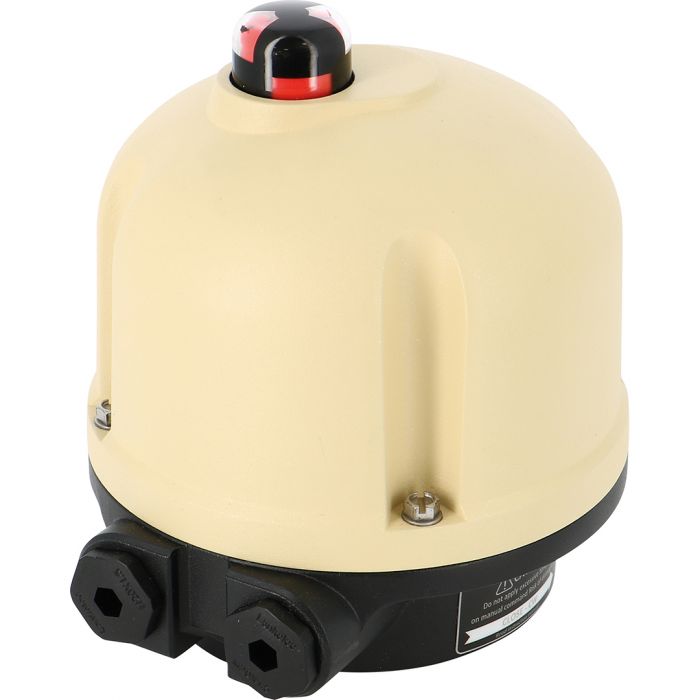

BERNARD CONTROLS waterproof quarter-turn actuator
- AQ range, model AQ3L
- Maximum torque 30 Nm
- Pre-wired SWITCH version, on/off Class A
- Operating time for 90° : 15 seconds
- Flange connection ISO 5211: F03/F04/F05
- Double square drive star 14mm x 14mm
- Supplied with two square output adapters 11mm x 11mm and 9mm x 9mm
- Supply voltages: 85V AC to 260V AC single phase and 24V DC
- Electrical power: 0.02 kW
- Rated current 0.3A
- Starting current: 0.8A
- Emergency manual override via 10mm square (!!!! Do not apply torque greater than 6 Nm to the square!!!)
- Cast aluminium housing
- IP68 (2m/24h) / NEMA 4X protection rating
- Operating ambient temperature range -20 to +60°C
- Cable entry 2x M20
- 2 SPDT contacts (Open and Closed) + 2 potential free auxiliary contacts 250V AC-5A / 48V DC-2.5A (resistive load)
- 3D mechanical position indicator
- AQ range, model AQ3L
- Maximum torque 30 Nm
- Pre-wired SWITCH version, on/off Class A
- Operating time for 90° : 15 seconds
- Flange connection ISO 5211: F03/F04/F05
- Double square drive star 14mm x 14mm
- Supplied with two square output adapters 11mm x 11mm and 9mm x 9mm
- Supply voltages: 85V AC to 260V AC single phase and 24V DC
- Electrical power: 0.02 kW
- Rated current 0.3A
- Starting current: 0.8A
- Emergency manual override via 10mm square (!!!! Do not apply torque greater than 6 Nm to the square!!!)
- Cast aluminium housing
- IP68 (2m/24h) / NEMA 4X protection rating
- Operating ambient temperature range -20 to +60°C
- Cable entry 2x M20
- 2 SPDT contacts (Open and Closed) + 2 potential free auxiliary contacts 250V AC-5A / 48V DC-2.5A (resistive load)
- 3D mechanical position indicator
Associated products
LIAX.003.002

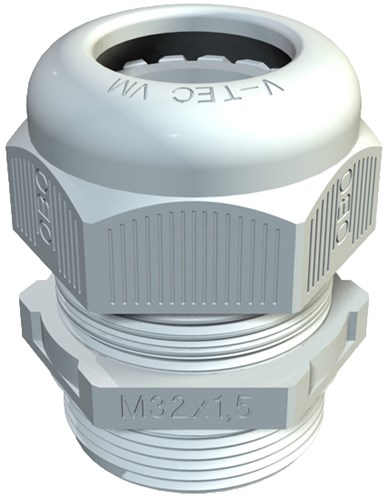

Cable gland for dual sensor
