Drytec S.A.
Mecafluid, your official dealer of Drytec products
Drytec, a proven experience in compressed air systems
With over 37 years of experience in compressed air systems, Drytec is one of the leading companies in the field of compressed air filters and automatic drainage systems. Constantly adapting to new technological developments and quickly integrating the solutions required by the sector into its structure, the company continues its operations with expertise.

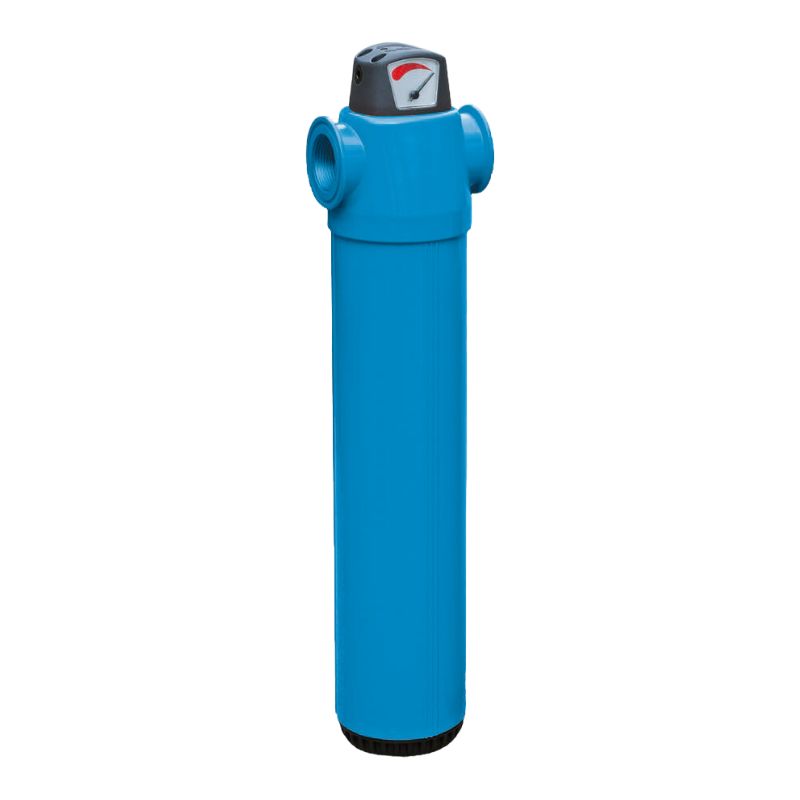

GO Series Compressed Air Filters
Drytec’s GO Series compressed air filters are designed to allow easy element replacement, with a “zero clearance” capability.
Features :
The air filters offer four levels of efficiency, removing contaminants as small as 0.01 microns at pressures up to 290 psi (20 bar) - pipe sizes from 1/4” to 3” NPT/BSP. A protected automatic float drain (2 mm orifice) is included as standard for optimum and reliable removal of liquid contaminants.
These air filters are manufactured from non-porous aluminium with a durable epoxy coating, as well as a corrosion-resistant internal coating for long service life. Filter combinations are configured to meet specific application requirements. The filters are PED compliant and operate in accordance with associated ISO 8573 standards.
They can be equipped with differential pressure gauges for easy maintenance and energy efficiency. Drytec compressed air filters are always recommended with this system.
Element Features :
Drytec offers superior protection - from 1 micron to 0.01 micron. The durable construction of the elements and the effective drainage layer ensure continuous performance with optimal element change intervals. The elements are also easy to replace thanks to the head clips.
Drytec elements have been designed for easy handling :
1- Deep pleating also allows for reduced pressure loss.
2- High resistance to collapse thanks to the use of a corrugated stainless steel tube, providing resistance against pressure loss while improving performance by passing air diagonally through the element.
3- PVC impregnated foam promotes water and oil drainage.

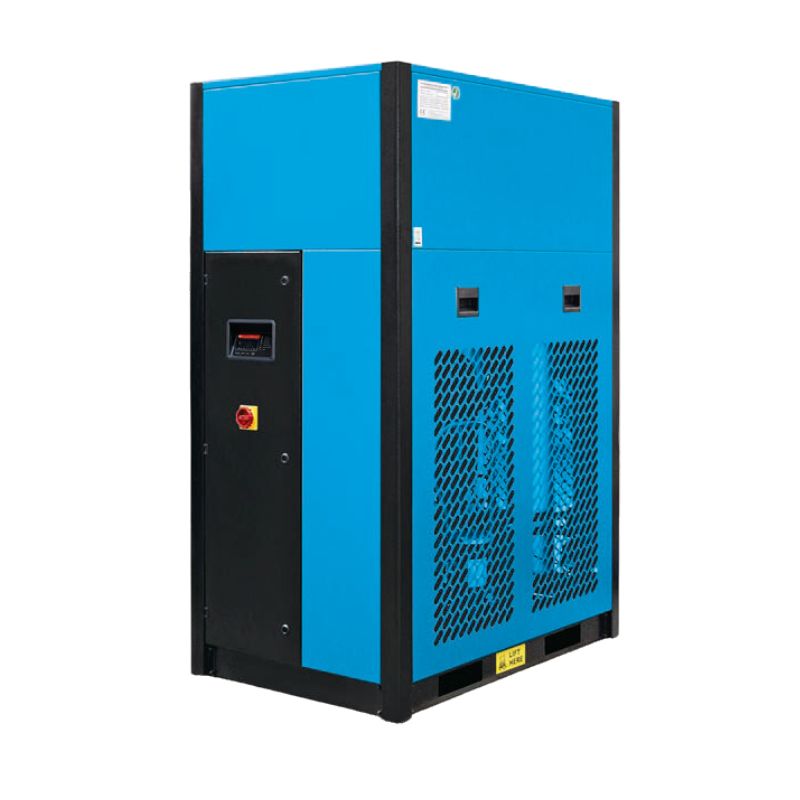

SDE Air Dryer Series
Integrated Filtration :
Drytec understands the importance of high quality compressed air and ensures to provide customers with the highest quality air.
Using clean and dry air is extremely important for all types of air powered applications. Moisture or contamination of the air coming from the standard compressor outlet can cause complex system errors. These complications will reduce productivity and can affect the production quality of the final products.
Benefits :
- Low pressure loss saves compressor power
- Fast start-up and response time allow for additional production time
- Each dryer is specifically designed with the right components to consume the least amount of energy
- Highly energy-efficient R134a refrigerant is standard on all models
- A state-of-the-art heat exchanger provides the greatest cost savings in the industry
- Best-in-class refrigerant compressors consume less energy than competitive dryers
- Pressure switches control the condenser fan motor to save energy and keep the system operating at the desired conditions
- Not just a dryer, but an air treatment package that delivers ISO 8573:2010 Class 1.4.1 air quality through integrated filtration
Applications :
Drytec offers a complete range of products for air filtration and purification applications at a cost-effective price.
Applications include: Food production, Dairies, Breweries, Clean Transport Air, Chemical Plants, Clean Air and Clean Room Technology, Pharmaceuticals, Weaving Machines, Photo Labs, Spray Painting, Powder Coating, Packaging, Control and Instrumentation Air, Sandblasting and/or Shot Blasting, General Aerial Work, Microchip Production, Optics, Process Air and many other markets.
History
Founded in Liège, Belgium, Drytec offers compressed air products and services worldwide. Drytec is a respected company in the industry and recognized for its extensive experience in the field of compressed air products, including air dryers.
More information ;:
Would you like to receive a quotation or more information about the products offered by Mecafluid for the Drytec brand ?Contact-us
