Reference : MAGS.003.00010
Brand reference : 3829 010
Catalog Price :
€12.75
Tax excluded 21.00 %
| Box material | Stainless Steel 304 |
| Connector material | Brass |
| Glycerol | With |
| Type of connection | At the back / Axial |
| Diameter of connection | 1/4" |
| Dial diameter | 63 mm |
| Pressure range | 0 to 10 bar |
| Precision class | 1.6 |
| Customs duty number | 9026-2080 |
| Gross weight (kg) | 0,184 |
| Eclass | 27200000 |
| Country of origin | ES |
| UNSPSC Code | 41110000 |

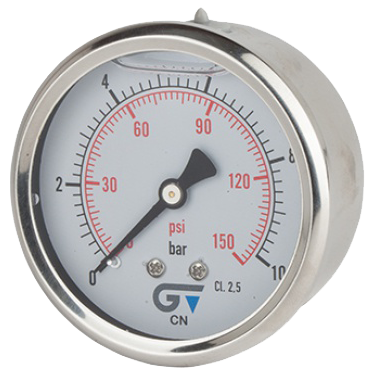

PRESSURE GAUGE D63 W/GLYCERINE 1/4" BACK CONN. 0-10,0-150
Needle manometer:
- Brass fitting on the back (Axial)
- Stainless steel case
- With glycerin
- Connection diameter: G1/4''
- Pressure range: 0 - 10 bar
- Dial diameter: 63 mm
- Double scale in bar and psi
- Ambient temperature: -15°C to +55°C
- Fluid service temperature: -15°C to +55°C
- Accuracy class: : 2.5
Needle manometer:
- Brass fitting on the back (Axial)
- Stainless steel case
- With glycerin
- Connection diameter: G1/4''
- Pressure range: 0 - 10 bar
- Dial diameter: 63 mm
- Double scale in bar and psi
- Ambient temperature: -15°C to +55°C
- Fluid service temperature: -15°C to +55°C
- Accuracy class: : 2.5
