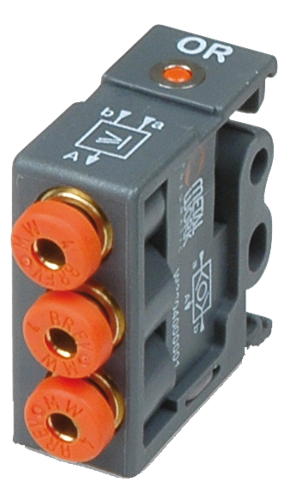

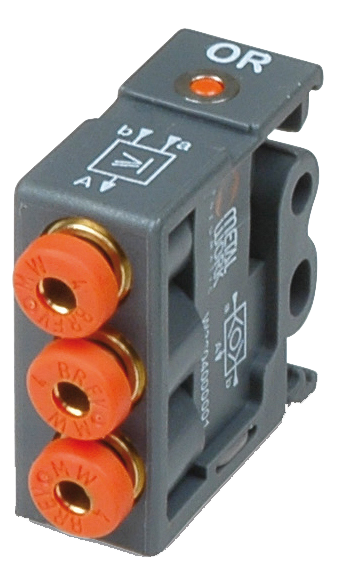

Non contractual picture
Product details Associated categories

Pneumatic Logic Element - OR - Ø4 mm - 1,5 à 8 bar

Reference : PAPL.PL.001.0001

Brand reference : W3604000001

Catalog Price :

€18.93
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

 2

Stock Belgium (Barchon)

 2

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Specifications OR
Body material Technopolymere
Piston seal material NBR
Connection ends Push-in
Tube diameter 4 mm
Max flow (Normolitres) 100 Nl/min
Operating pressure 1,5 to 8 bar
Fluid working Temp (-)10°C to (+)60°C
Compatibility - fluids Compressed air
Customs duty number 8481-8099
Gross weight (kg) 0,025831
Eclass 27290000
Country of origin IT
UNSPSC Code 27131700
PNEU LOGIC ELEMENT (OR)
