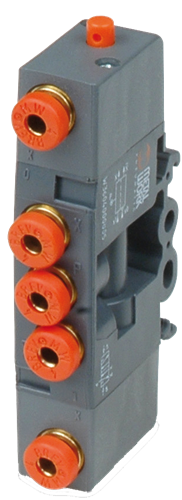

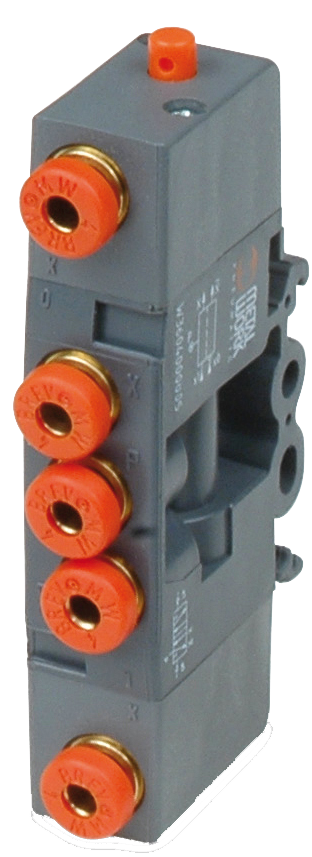

Pneumatic Logic Element - MEMORY - Ø4 mm - 1,5 à 8 bar

Reference : W3604000005

Catalog Price :

53.40
Tax excluded 21.00 %
Stock Belgique (Liège) 1
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Specifications MEMORY
Body material Technopolymere
Seal material NBR
Connection ends Push-in
Tube diameter 4 mm
Max flow (Normolitres) 100 Nl/min
Operating pressure 0 to 8 bar
Max input pressure at 23°C 8 bar
Set pressure 6 bar
?P load loss 1 bar
Fluid working Temp (-)10°C to (+)60°C
Compatibility - fluids Compressed air
Customs duty number 8481-8099
Gross weight (kg) 0,058018
Eclass 27290000
Country of origin IT
UNSPSC Code 27131700
