Reference : G653ABJP6JA000N
Catalog Price :
€131.04
Tax excluded 21.00 %
| Supplier series | 653 |
| Specifications | Particulate |
| Body material | Aluminum |
| Piston seal material | NBR |
| Tank material | Polycarbonate |
| Filtration | 25 µm |
| Diameter of connection | 1" |
| Max flow (ANR) | 5000 l/min |
| Max input pressure at 23°C | 16 bar |
| Set pressure | 6,3 bar |
| ?P load loss | 1 bar |
| Fluid working Temp | (-)20°C to (+)50°C |
| Compatibility - fluids | Air or neutral gas |
| Customs duty number | 8481-1005 |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| Country of origin | FR |
| UNSPSC Code | 27131700 |

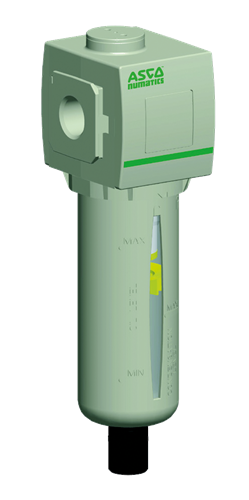

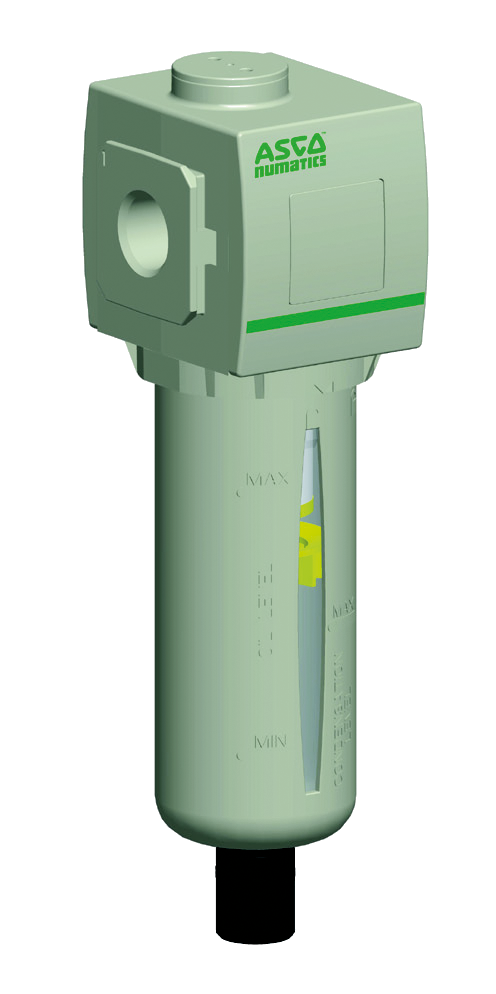

PARTICULATE FILTER, 653 SERIES, PORT SIZE G1, WITH 25µ FILTER ELEMENT, POLYCARBONATE BOWL WITH PROTECTOR AND SEMI-AUTOMATIC DRAIN
