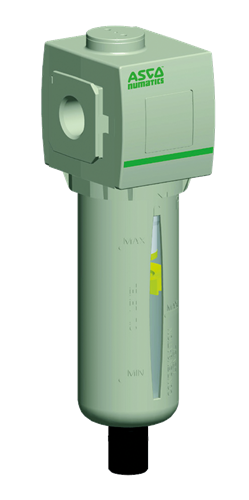

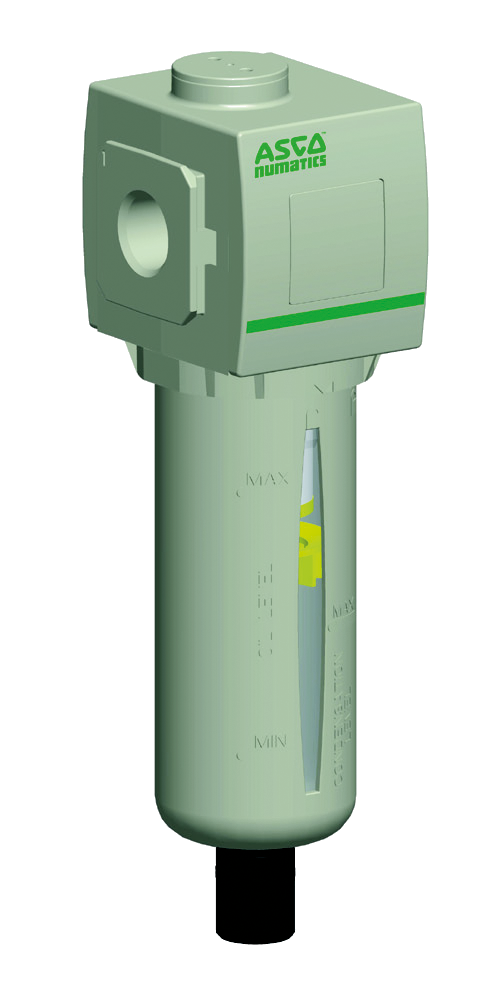

Particulate filter ASCO Serie 652 - G1/2" - 5µm - P.max : 16bar - Semi-automatic drain - Q:2290l/min

Reference : G652ABBP4JA000N

Catalog Price :

71.04
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

2

Stock Belgium (Barchon)

4

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Supplier series 652
Specifications Particulate
Body material Aluminum
Piston seal material NBR
Tank material Polycarbonate
Filtration 5 µm
Diameter of connection 1/2"
Max flow (ANR) 2290 l/min
Max input pressure at 23°C 16 bar
Set pressure 6,3 bar
?P load loss 1 bar
Fluid working Temp (-)20°C to (+)50°C
Compatibility - fluids Air or neutral gas
Customs duty number 8481-1005
Gross weight (kg) 0,553
Eclass 27290000
Country of origin PL
UNSPSC Code 27131700
Particulate Filter 652 Series, Port Size G1/2, 5 Micron Filter Element, Polycarbonate Bowl with protector, Manual/Semi-automatic Drain
