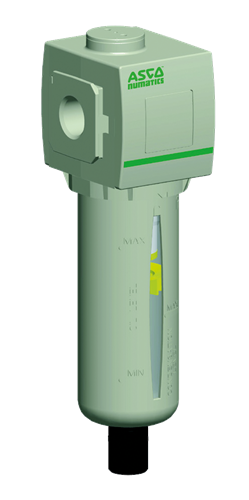

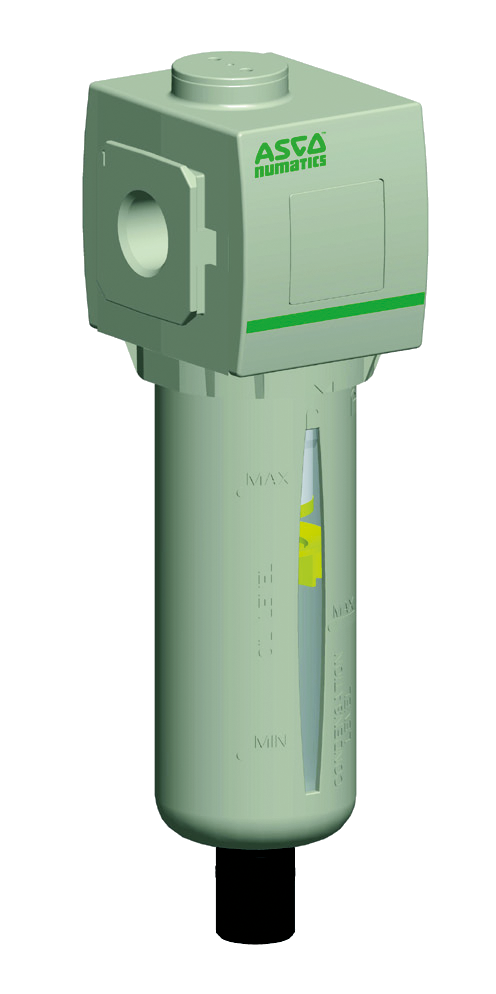

Particulate filter ASCO Serie 342 - G1"1/2 - 30 µm - Max 16 bar - Semi-automatic drain - Q:7140l/min

Reference : 34207004

Price upon request Contact us

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Supplier series 160
Body material Aluminum
Tank material Metal
Filtration 30 µm
Total filter tank capacity 500 cm³
Diameter of connection 1"1/2
Max flow (ANR) 10300 l/min
Max input pressure at 23°C 17,5 bar
Max input pressure at 50°C 12 bar
Set pressure 6,3 bar
?P load loss 0,5 bar
Fluid working Temp (-)10°C to (+)50°C
Compatibility - fluids Air or neutral gas
Customs duty number 8481-1005
Gross weight (kg) 1,738
Eclass 27290000
Country of origin FR
UNSPSC Code 27131700
FILTER MODULAIR 160 SERIES 342 FILTER 30 MICRON METAL BOWL WITH VISUALIZATION WITH SEMI AUTOMATIC DRAIN G1 1/2
