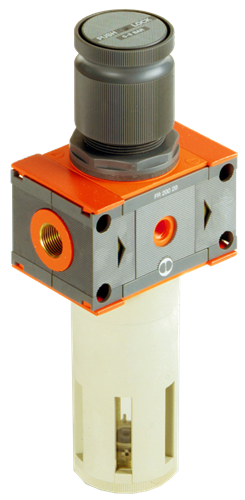

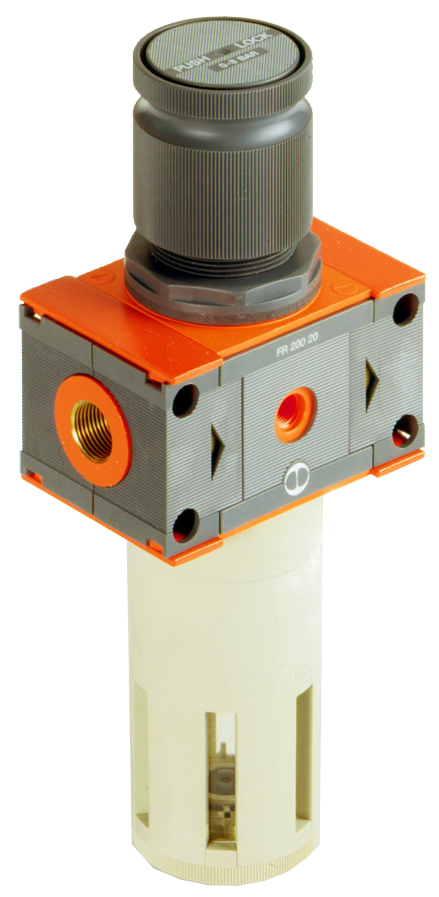

Filter Regulator Metal Work Serie FR 300 - G3/4" - 50 µm - 13 bar - Semi-auto drain - 0 to 12 bar

Name: Filter Regulator Metal Work Serie FR 300 - G3/4" - 50 µm - 13 bar - Semi-auto drain - 0 to 12 bar
Brand: Metal Work
SKU: 4583009
Price: 146.22 EUR
Availability: OutOfStock

Reference : 4583009

Catalog Price :

€146.22

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
4 weeks

Supplier series	FR 300
Specifications	Particulate
Body material	Technopolymere
Piston seal material	NBR
Tank material	Aluminum
Filtration	50 µm
Diameter of connection	3/4"
Max flow at upstream pressure	7 bar
Max flow (Normolitres)	3500 Nl/min
Regulation pressure	0 to 12 bar
Max input pressure at 23°C	13 bar
Set pressure	6,3 bar
?P load loss	0,5 bar
Fluid working Temp	(-)10°C to (+)50°C
Compatibility - fluids	Air or neutral gas, filtered, lubricated or not
Customs duty number	8421-9900
Gross weight (kg)	1,798
Eclass	27290000
Country of origin	IT
UNSPSC Code	27131700
