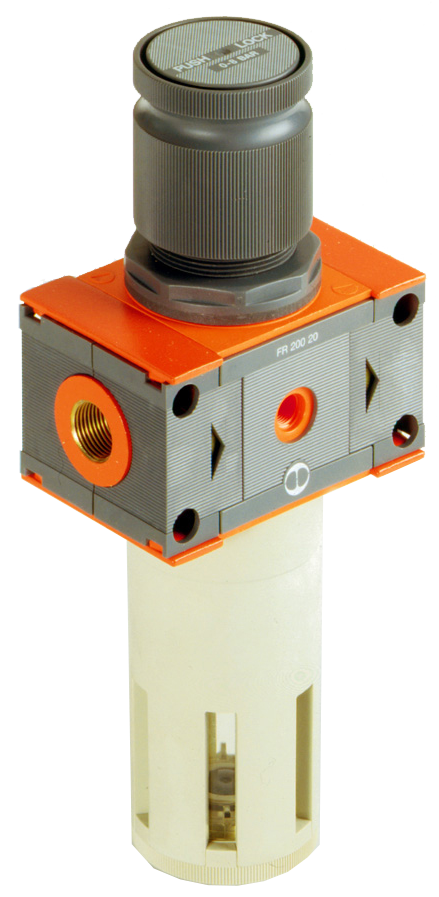

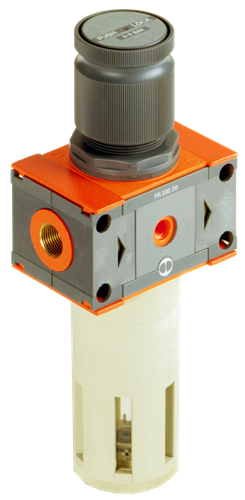

Filter Regulator Metal Work Serie FR 200 - G3/8" - 20 µm - 13 bar - Semi-auto drain - 0 to 12 bar

Name: Filter Regulator Metal Work Serie FR 200 - G3/8" - 20 µm - 13 bar - Semi-auto drain - 0 to 12 bar
Brand: Metal Work
SKU: 3583011
Price: 134.85 EUR
Availability: InStock

Reference : 3583011

Catalog Price :

€134.85

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Supplier series	FR 200
Specifications	Particulate
Body material	Technopolymere
Piston seal material	NBR
Tank material	Technopolymere
Filtration	20 µm
Diameter of connection	3/8"
Max flow at upstream pressure	7 bar
Max flow (Normolitres)	1600 Nl/min
Regulation pressure	0 to 12 bar
Max input pressure at 23°C	13 bar
Set pressure	6,3 bar
?P load loss	0,5 bar
Fluid working Temp	(-)10°C to (+)50°C
Compatibility - fluids	Air or neutral gas, filtered, lubricated or not
Customs duty number	8421-9900
Gross weight (kg)	0,959
Eclass	27290000
Country of origin	IT
UNSPSC Code	27131700
