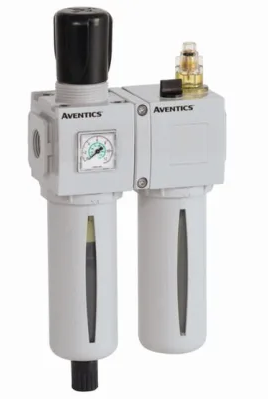

Filter Regulator Lubricator ASCO Serie 652 - G1/4" - 25 µm - 0,5 to 10 bar - Automatic drain

Name: Filter Regulator Lubricator ASCO Serie 652 - G1/4" - 25 µm - 0,5 to 10 bar - Automatic drain
Brand: Asco
SKU: A652A0000000007
Price: 266.35 EUR
Availability: OutOfStock

Reference : A652A0000000007

Catalog Price :

€266.35

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
11-15 working days

Supplier series	652
Body material	Aluminum
Piston seal material	NBR
Tank material	Polycarbonate
Filtration	25 µm
Total lubricant tank capacity	72 cm³
Diameter of connection	1/4"
Max flow at upstream pressure	10 bar
Max flow (ANR)	4120 l/min
Regulation pressure	0,5 to 10 bar
Max input pressure at 23°C	10 bar
Set pressure	6,3 bar
?P load loss	1 bar
Fluid working Temp	(+)5°C to (+)50°C
Compatibility - fluids	Air or neutral gas
Customs duty number	8481-1005
Gross weight (kg)	1,263
Eclass	27290000
Country of origin	PL
UNSPSC Code	27131700

Description
Documents

Filter/Regulator, + Lubricator 652 Series, Port Size G1/4, Polycarbonate Bowl with protector, Automatic Drain, Integrated Flat Gauge, 0-10 Bar Regulation zone , 25 Micron Filter Element
