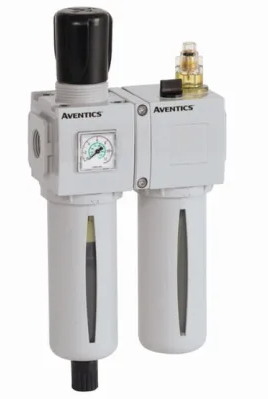

Filter Regulator Lubricator ASCO Serie 652 - G1/2" - 25 µm - 0,5 to 10 bar - Semi-automatic drain

Name: Filter Regulator Lubricator ASCO Serie 652 - G1/2" - 25 µm - 0,5 to 10 bar - Semi-automatic drain
Brand: Asco
SKU: A652A0000000003
Price: 214.38 EUR
Availability: InStock

Reference : A652A0000000003

Catalog Price :

€214.38

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	10
Stock Belgium (Barchon)	18
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Supplier series	652
Body material	Aluminum
Piston seal material	NBR
Tank material	Polycarbonate
Filtration	25 µm
Total lubricant tank capacity	72 cm³
Diameter of connection	1/2"
Max flow at upstream pressure	10 bar
Max flow (ANR)	5500 l/min
Regulation pressure	0,5 to 10 bar
Max input pressure at 23°C	10 bar
Set pressure	6,3 bar
?P load loss	1 bar
Fluid working Temp	(+)5°C to (+)50°C
Compatibility - fluids	Air or neutral gas
Customs duty number	8481-1005
Gross weight (kg)	1,263
Eclass	27290000
Country of origin	FR
UNSPSC Code	27131700

Description
Documents

Filter/Regulator, + Lubricator 652 Series, Port Size G1/2, Polycarbonate Bowl with protector, Manual/Semi-automatic Drain, Integrated Flat Gauge, 0-10 Bar Regulation zone , 25 Micron Filter Element
