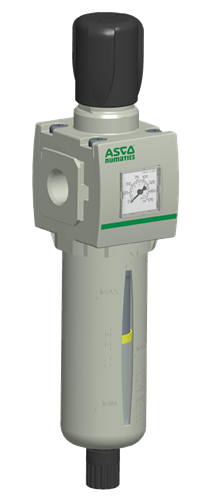

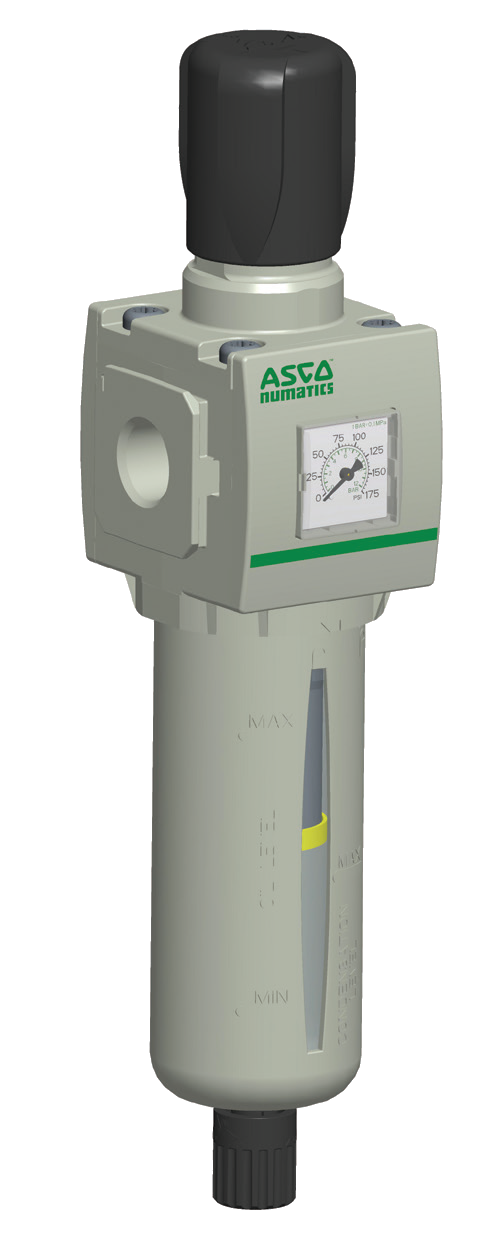

Filter Regulator ASCO Serie 652 - G1/2" - 5 µm - 0,5 to 10 bar - Semi-auto drain - Q:4490l/min

Name: Filter Regulator ASCO Serie 652 - G1/2" - 5 µm - 0,5 to 10 bar - Semi-auto drain - Q:4490l/min
Brand: Asco
SKU: G652APBP4GA00HN
Price: 114.79 EUR
Availability: InStock

Reference : G652APBP4GA00HN

Catalog Price :

€114.79

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	1
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Supplier series	652
Specifications	Particulate
Body material	Aluminum
Piston seal material	NBR
Tank material	Polycarbonate
Filtration	5 µm
Diameter of connection	1/2"
Max flow at upstream pressure	10 bar
Max flow (ANR)	4490 l/min
Regulation pressure	0,5 to 10 bar
Max input pressure at 23°C	16 bar
Set pressure	6,3 bar
?P load loss	1 bar
Fluid working Temp	(-)20°C to (+)50°C
Compatibility - fluids	Air or neutral gas
Customs duty number	8481-1005
Gross weight (kg)	0,66
Eclass	27290000
Country of origin	PL
UNSPSC Code	27131700

Description
Documents

652 SERIES FILTER-REGULATOR PARTICULATE, PORT SIZE/TYPE: 1/2 ISO228/1-G, ELEMENT: 5 MICRON - PARTICULATE, BOWL TYPE: POLYCARBONATE BOWL WITH BOWL GUARD, GAUGE TYPE: LOW PROFILE GAUGE BAR/PSI, PRESSURE RANGE: 7-145 PSIG / 0.5-10 BAR, DRAIN TYPE: SEMI - AUTOMATIC / MANUAL DRAIN
