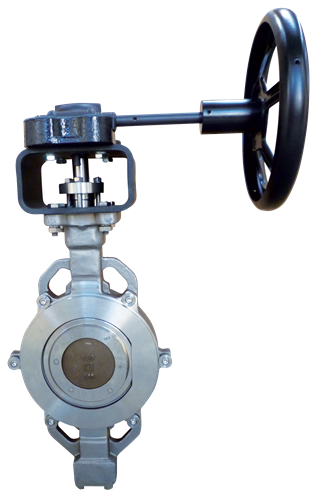

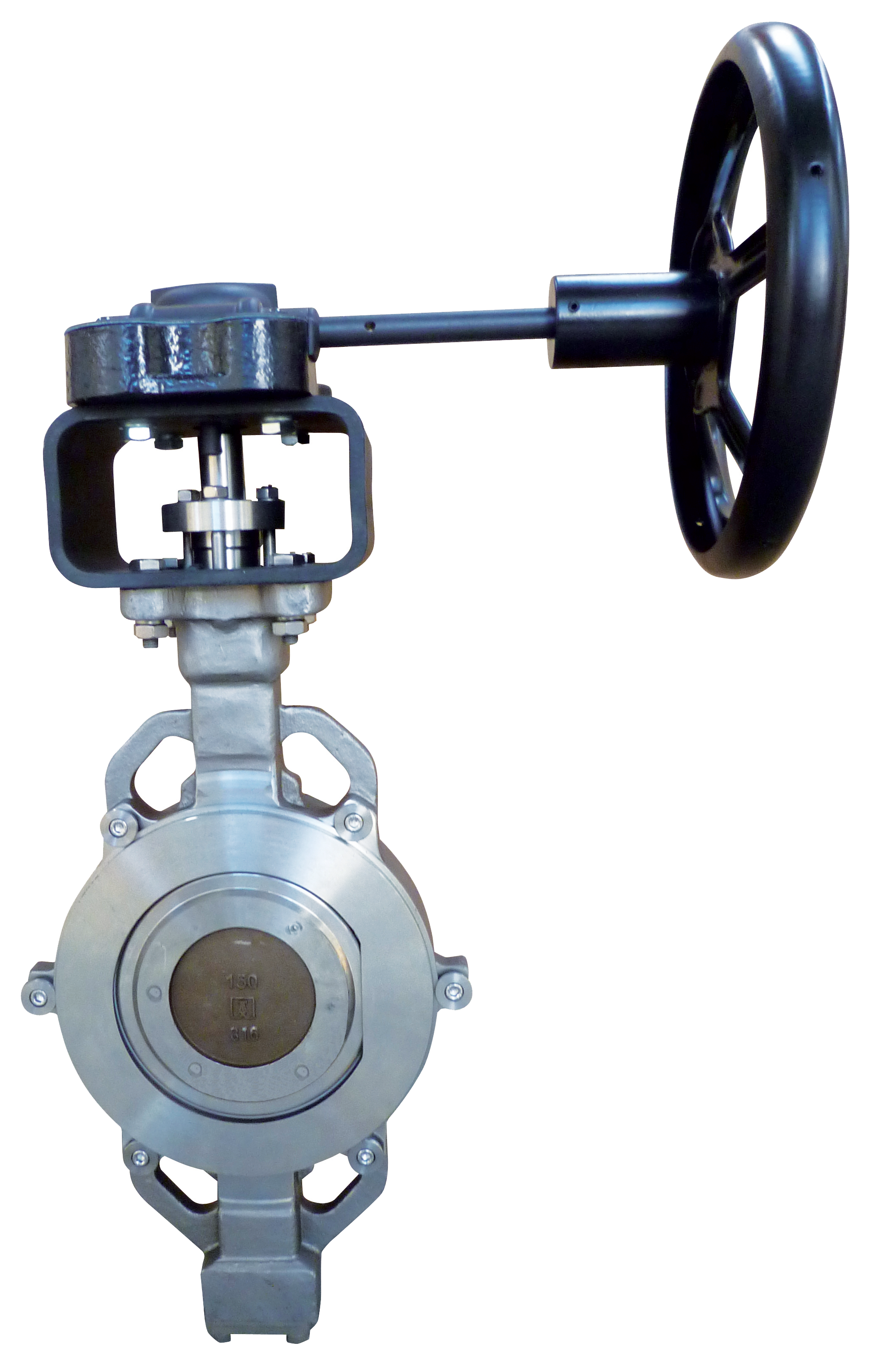

Double offset butterfly valve - Stainless Steel body and butterfly - R-PTFE - DN500 - WAFER - PN25

Reference : BUWM.013.500

Brand reference : 2E-5490B 500 GEARBOX

Price upon request Contact us

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Usual lead time :
11-15 working days
Body material Stainless Steel
Sealing PTFE filled with 15% glass fiber
Type of connection Wafer
Diameter of connection DN500
GN 16/25/40
PN 25
Fluid working Temp (-)50°C to (+)200°C
Operated Manual by handwheel gear reducer
Compatibility - fluids For water, cold water, natural gas, gasoline, air, oil, kerosene, industrial line, steam and vacuum
Customs duty number 8481-8059
Gross weight (kg) 281
Eclass 37010000
Country of origin CZ
UNSPSC Code 40140000
