Non contractual picture

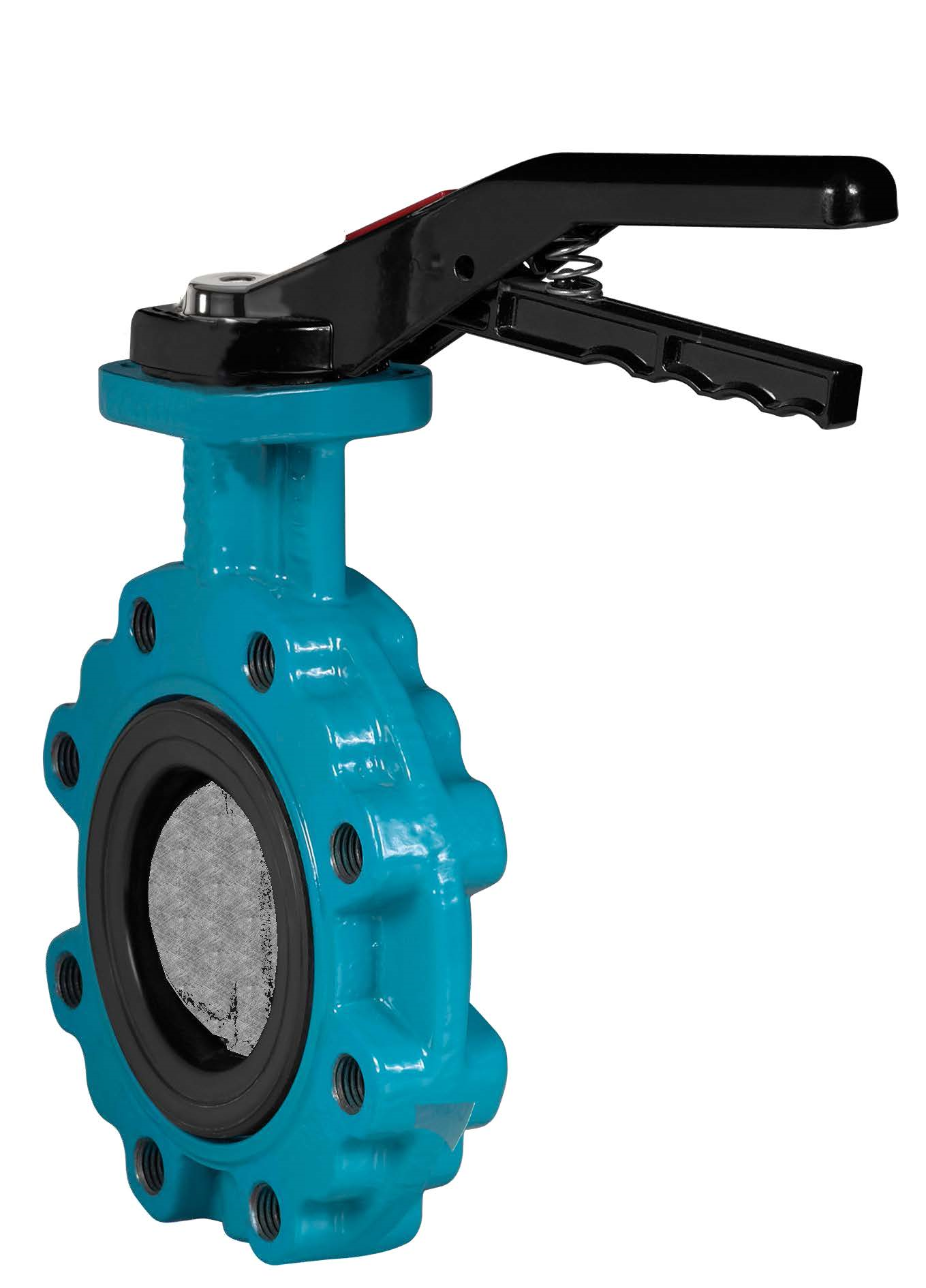

Butterfly valve - GGG40/EPDM/CF8M - LUG DN80 - GN16 - PN16 - Hand lever

Reference : BULM.001.080

Brand reference : 88678437

Catalog Price :

€194.21
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

 4

Stock Belgium (Barchon)

 4

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Body material Nodular cast iron (GGG40-50)
Sealing EPDM
Type of connection LUG
Diameter of connection DN80
GN 16
PN 16
Fluid working Temp (-)10°C to (+)120°C
Operated Manual by notched lever
Compatibility - fluids For common compatible fluids
Customs duty number 8481-8085
Gross weight (kg) 6,31
Eclass 37010000
UNSPSC Code 40140000
